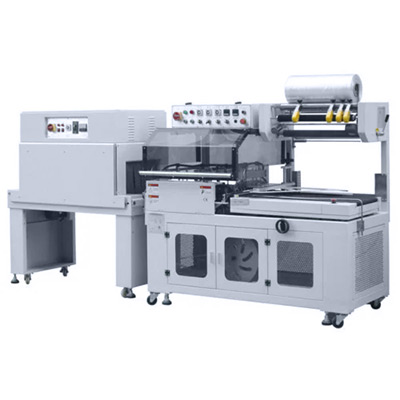

Fully automatic L sealer
| Machine dimensions (L x W x H) (mm) | 1870x870x1380 |
|---|---|
| Conveyor belt top height (mm) | 800+50 |
| Maximum seal dimensions (L x W) (mm) | 550 x 450 |
| conveyor speed (m/min) In feed/out feed | 21.3/17.6 |
| Film feed speed (m/min) | 17.6 |
| Film towing out speed (m/min) | 19.4 |
| Conveyor Bridging | Yes |
| Sealing temperature(°C) | 50-200 |
| Voltage/ Frequency (V/Hz) | 230V |
| Power(W) | 1200 |
| In feed conveyor motor(W) | 60 |
| Out feed conveyor motor(W) | 60 |
| Film providing motor (W) | 25 (With Brake) |
| Film clamping motor (W) | 25 (With Brake) |
| Film reclaiming motor (W) | 15 |
| Lengthwise sealing heater (W) | 550 |
| Breadth wise sealing heater (W) | 450 |
| Air supply (kg/cm ) | 8-10 |
| Sealing time (s) | 0-2 |
| Suitable film | POF |
| Net weight (kg) | 455 Kg |
| Gross weight (kg) | 555 Kg |
| Features: | Application |
|---|---|
| • Fully automatic • L-sealing • Microprocessor based interface • Preset programs • Digital display • Pre-settable product counters • Waste film take-up • Total Count Metter • Friction conveyor |
• Stationery • Sweets • Gift Packets • Confectionery • Welding Rods • Cosmetics • Bottles • Note book |
