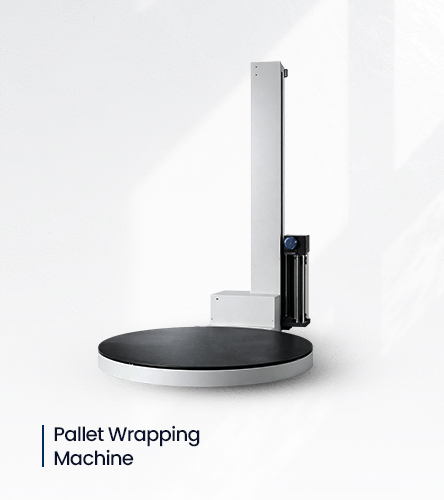

Pallet Stretch Wrapping machine.
| Pallet Size MM | Length : 800 Min To 900 Width : 800 Min To 900 Height : 800 Min To 1000 |
|---|---|
| Weight Capacity | 200 To 2000 KG |
| Power | 415 V. A.C 3 Phase + Neutral + Earthing (415 V AC 50 Hz) |
| Turntable Die | 1650 MM |
| Motor | Turntable Motor : 2 HP Pre-Stretch Motor : 0.25 Hp Up-Down System Motor : 0.5 Hp |
| Speed | Up to 20 rpm |
| Turntable drive | Turntable Motor : 2 HP Pre-Stretch Motor : 0.25 Hp Up-Down System Motor : 0.5 Hp |
| Stretch Film Roll Diameter | Up to 18 ” Max ID: up To 3” OD up To 10” |
| Pre-Stretch Type | Pre-Stretch Up To 300 % Film Stretch |
| Control System | Plc Delta And INVT make 8 Input output plc Relay Switches Technique Make Eye Sensor for Auto Height |
| APPLICATION | ADVANTAGES |
|---|---|
| • High Quality • Up-Down System For Cover Maximum Size. • Pre Stretch System Supplying up to 250% Stretch • Ac Motor With Frequency Inverter Control. • Film Tension Control Adjustment. • Separate Start/Reset/Emergency Stop Button. • Heavy Duty Chain Drive. • Home Position : The Turntable Always Stops At The Same Position. • Both One Touch Automatic Programs And Manual Run Option. • Advanced Photo Eye to Sense on the Package Angle. • Easy to Load Stretch Film Unit. |
• Save film Upto 300 % with Pre-stretch unit system • Save labor • uniform packaging • Film Tension Control Adjustment • Advanced Photo Eye to Sense on the Package Angle. • High Quality Pallet stretch wrapping machine |
