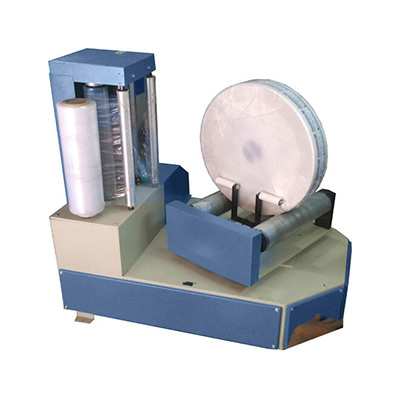

Reel Stretch Wrapping machine with Pre stretched System.
| Working Product Diameter For Reel | Width : 200 MM To 370 MM Diameter : 260 MM To 500 MM Reel Weight : Up To 90 KG |
|---|---|
| Diameter Of Roll (Stretch Film) | Core ID : 75 MM OD: UP TO 200 MM Width :125 MM TO 300 MM |
| Packing Efficiency | 30-40 Rolls/Hour (Depend On Product ) |
| Turntable Speed | 0 To 20 RPM (Depend On Product) |
| Dia. of Turntable | 500 MM (As Per Customer Requirement) |
| Roller Specification | Rollers : 2 Nos. (M.S) Roller : M.S Roller With Rubber Belt Dia. of Roller : 125 MM Roller Center Distance : 205 MM |
| Motors | Tune Table Motor & Roller Motor : 1 HP Pre- stretch Motor : 0.5 |
| Motor Drive (V.F.D) | Tune Table Motor : 1 Hp |
| Pre-stretch System | Rubber Mounted Roller Base Automatic Cancer Base Power Pre-Stretch System Save Film Up To 300 % Auto Off Sensor Base System |
| Speed | Variable |
| Working Weight | Up to 100 Kg |
| Features | Advantages |
|---|---|
| • The machine can be equipped onto packing production line to complete film wrapping. • It adopts programmable control with function of automatic positioning, auto reset of turntable etc. |
• Protection Against Moister And Dust • Prevent Telescoping of Rolls • Save Packaging Cost, labour and Time • Better Identification of Warped Product • Gives Stability to Product • Economical Way of Packing • Save from Atmosphere, Rain Etc • Film Save Up To 300 % |
