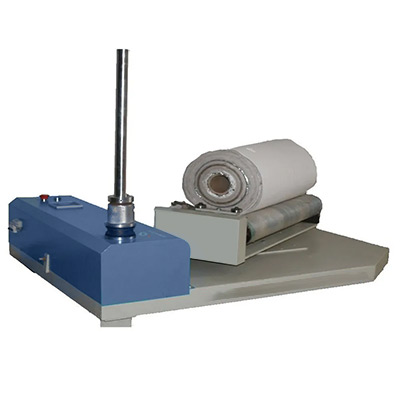

Simple Reel Stretch Wrapping machine

Working Product Diameter | Width: Up to 500 MM Diameter : Up To 500 MM Reel weight :Up To 100 KG |
---|---|
Diameter Of Roll (Stretch Film) | Core ID : 75 MM OD: UP TO 200 MM Width :125 MM TO 300 MM |
Packing Efficiency | 30-40 Rolls/Hour (Depend On Product ) |
Turntable Speed | 0 To 20 RPM (Depend On Product) |
Dia. of Turntable | 800 MM (As Per Customer Requirement) |
Roller Specification | Rollers : 2 Nos. (M.S) Roller : M.S Roller With Rubber Belt Dia. of Roller : 125 MM Roller Center Distance : 205 MM |
Motors | Tune Table Motor & Roller Motor : 1 HP |
Machine Weigth | Approx. 300 Kg |
Features | Advantages |
---|---|
• The machine can be equipped onto packing production line to complete film wrapping. • It adopts programmable control with function of automatic positioning, auto reset of turntable etc. |
• Protection Against Moister And Dust • Prevent Telescoping of Rolls • Save Packaging Cost, labour and Time • Better Identification of Warped Product • Gives Stability to Product • Economical Way of Packing • Save from Atmosphere, Rain Etc • Film Save Up To 300 % |
